■Specification(基本規格) ◎Total Rotation Angle -----------300° 全回角度 ◎Resistance Value---------500-1M/ 標準電阻值 ◎Tolerancee----------±10%/±20% 阻值偏差 ◎Power Rating-------0.2W(B Taper) 額定功率 ◎Switch Travel--------------4.0mm±0.5mm 開關行程 ◎Switch Rating-------------50V DC 0.3A 開關額定值 ◎Switch Function-----------400±100gf.cm 開關力矩 ◎Rotation Life--------15000 Cycles 回轉壽命

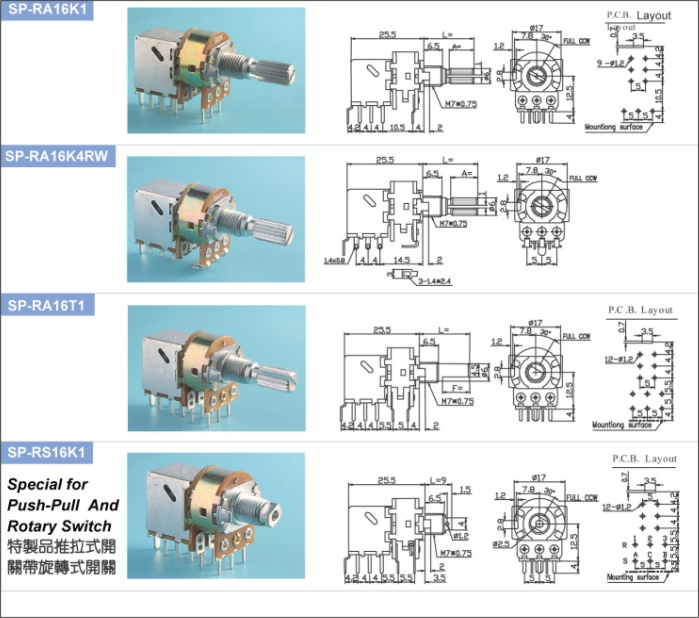

■Dimensions尺寸圖/P.C.B.mounting hole detail 線路板安裝孔尺寸圖
可變電阻客製化設計服務 We offer special design of all kind potentiometer.
