■Specification(基本规格)
Total Rotation Angle---------No End Stopper
  总旋转角度
Rotation torque--------------30-200gf.cm
  旋转扭矩
Power rating-----------------50V DC 0.5mA
  额定功率
Contact resistance-----------1Ω Max
  接触电阻
Insulation resistance--------Min.100MΩ at DC 250V
  绝缘电阻
Dielectric strength----------1Minute at AC 300V
  绝缘强度
Resolution-------------------12or20or24 pulses/360°foreach phase
  分辨率
Switch travel----------------0.5mm
  开关行程
Switch rating----------------5V DC 10mA
  开关额定值
Switch Operating-------------5±3N（510±306gf）
  开关操作
Rotation life----------------15000 Cycles
  旋转寿命

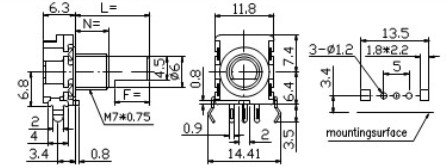

■Dimensions尺寸图/P.C.B.mounting hole detail 线路板安装孔尺寸图
